Ring Turning Chuck for 1-1/4"-8 TPI Lathe

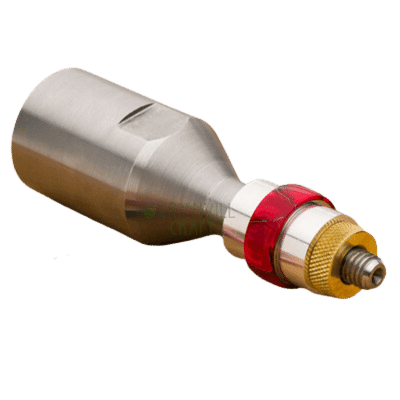

Ring Turning Chuck

Not suitable for 4mm width rings

The Ring Turning Chuck provides precision and convenience when turning ring blanks helping you to achieve a perfect high quality finish on your rings when turning and polishing. The chuck can also be used with other woodturning items such as bottle stoppers and other projects.

Lathe Ring Making Tools

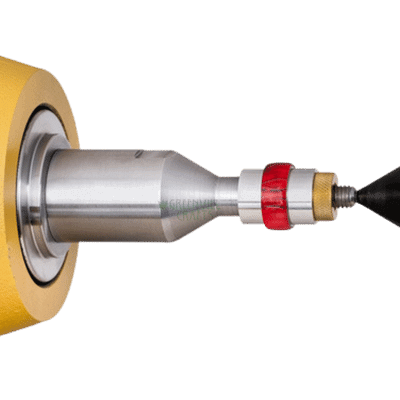

This chuck is suitable for lathes with a 1-1/4"-8 TPI spindle thread

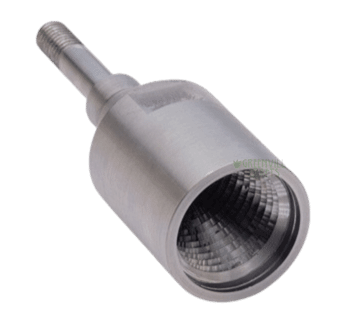

When you look at the tool in detail, you'll see that it's precision machined from solid steel and threaded to fit directly onto your lathes spindle, the single piece design with 60 degree dimple on the end of the shaft for tailstock support guarantees perfect concentricity every time.

Benefits of a ring chuck over expanding ring mandrels

• The artisan ring turning chuck, being attached directly to the spindle of the lathe, prevents concentricity issues that might occur when expanding ring mandrels are inserted into a chuck (prevents "wobble").
• Only one chuck is required rather than at least two expanding ring mandrels giving great value for money.
• No moving parts, providing the chuck with a longer lifespan than mandrels or step chucks.

Ring Turning Bushing size

Long-lasting machined aluminum ring bushings are included in small, medium and large sizes. The metal ring turning bushings allow you to turn a full range of ring core sizes from 4-16 (USA) including half sizes.

With the Ring Turning Chuck, changing bushings and mounting ring cores is as easy as removing the brass tightening nut, swapping out bushings and replacing the nut. This will be the most used ring making tool in your work-shop.

• Designed specifically for turning ring cores
• Machined from solid steel, one-piece design
• 60 degree shaft recess for revolving cone center support
• Accurate and eliminates vibration
• Changing bushings is quick and easy
• Wrench flats for easy removal - (wrench not included)
• 1/8"-8 tpi spindle thread
• Made in USA

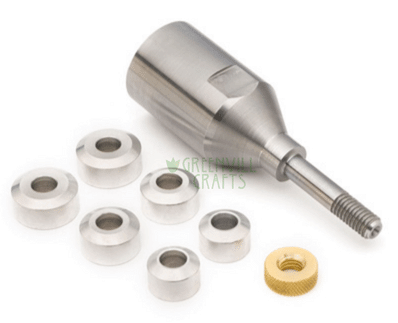

Package includes:

• Ring chuck body
• Set of 2 small aluminium ring bushings
  • Fits ring sizes 4-7.5
• Set of 2 medium aluminium ring bushings
  • Fits ring sizes 8-11.5
• Set of 2 large aluminium ring bushings
  • Fits ring sizes 12-16

Finishing

When applying a finish such as CA glue to the finished ring, we recommend that you use a product from our shop, protective tape on the bushings. You'll get first class work and the bushings will have a longer lifespan.
